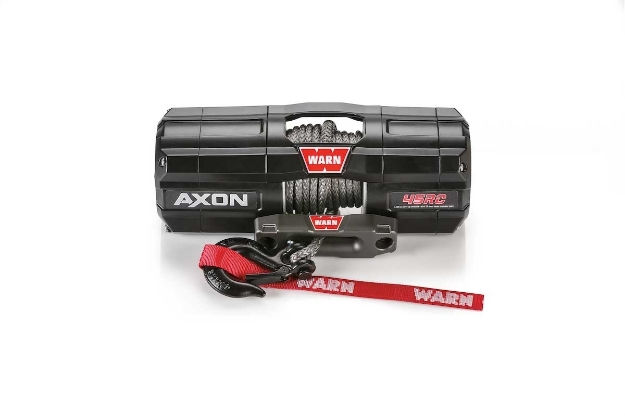

The Warn Axon 45RC was designed for exactly the situation sport Side x Side owners face: you want a winch, but the bumper space is tight. The RC (Round Compact) drum configuration is shorter and narrower than a standard winch drum, which means it fits bumpers that a full-size winch won't. The capacity is still a full 4,500 lb — you're not giving up pulling power, just footprint.

At Trail Soda, we run the Axon 45RC as the go-to recommendation for sport UTVs on technical trail systems — particularly for Maverick R builds where the Elektric Offroad Amp Front Winch Bumper is involved. The Amp bumper's winch mount accepts standard bolt patterns, and the 45RC's compact footprint keeps the install clean without clearance issues.



AXON 45RC includes 27' of lightweight, easy-to-handle ¼" Spydura synthetic rope, an Epic hawse fairlead, and a black hook

Compact configuration specifically for the space constraints of a sport Side x Side

Powerful 4,500 lb. pulling capacity

Revolutionary Motactor™ combines motor and contactor for easy installation

New clutch design based on legendary WARN 4WD hub lock know-how

Rockerbar digital control switch and HUB Wireless Receiver

Load-holding brake for great control

Smooth, reliable all-metal three-stage planetary gear train

IP68 waterproofing — fully sealed against water and the elements

Limited lifetime warranty (mechanical), 3-year warranty (electrical)


Pair this winch with the Maverick R Amp Front Winch Bumper or Maverick R Volt Front Winch Bumper for a complete winch-ready front end on your Can-Am Maverick R.
